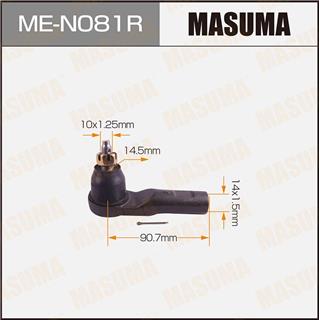

MASUMA TIE ROD END
VENDOR CODE: ME-N081R
Remark: External Thread x Female Thread:10x1.25mm Taper Diameter:14.5mm External Thread x Female Thread:14x1.5mm Center Distance:90.7mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
19604
2421-CLIRH
4852000Q0G
48520-00Q1J
48520-00QAB
48520-00QAD
48520-00QAF
48520-00QAP
48520-AX602
5831
7701047416
7701047813
7701474493
7701474642
7701475843
A4533307000
C4200R
CE0517
CEN-124
ET43002R
JTE775
SE-N081R
MICRA C+C
Chassis No. Year Configuration
CK12E. 1400cc. CR14DE 2005/09-2007/09 1.4L Petrol CR14DE EGI (88 hp / 65 kW) Front wheel drive.
CK12E. 1600cc. HR16DE 2005/09-2007/09 1.6L Petrol HR16DE EGI (88 hp / 65 kW) Front wheel drive.
FHZK12 2007/05-2010/08 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
MICRA
Chassis No. Year Configuration
K12E. 1000cc. 3D. CG10DE 2004/04-2005/05 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K12E. 1000cc. 5D. CG10DE 2004/04-2005/05 1.0L Gasoline CG10DE EGI (65 hp / 48 kW) Front wheel drive.
K12E. 1200cc. 3D. CG12DE 2004/04-2007/09 1.2L Petrol CG12DE EGI (65 hp / 48 kW) Front wheel drive.
K12E. 1200cc. 3D. CR12DE 2004/04-2007/09 1.2L Petrol CR12DE EGI (90 HP / 66 kW) Front wheel drive.
K12E. 1200cc. 5D. CG12DE 2004/04-2007/09 1.2L Petrol CG12DE EGI (59 hp / 80 kW) Front wheel drive.
K12E. 1200cc. 5D. CR12DE 2004/04-2007/09 1.2L Petrol CR12DE EGI (80 hp / 109 kW) Front wheel drive.
K12E. 1400cc. 3D. CGA3DE 2004/04-2005/05 1.4L Petrol CGA3DE EGI (82 hp / 60 kW) Front wheel drive.
K12E. 1400cc. 3D. CR14DE 2005/05-2007/09 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
K12E. 1400cc. 5D. CGA3DE 2004/04-2005/05 1.4L Petrol CGA3DE EGI (82 hp / 60 kW) Front wheel drive.
K12E. 1400cc. 5D. CR14DE 2005/05-2007/09 1.4L Petrol CR14DE EGI (98 hp / 72 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.48KW 2004/04-2007/09 1.5L Diesel K9K (65 hp / 48 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.50KW 2005/01-2007/09 1.5L Diesel K9K (68 hp / 50 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.60KW 2004/04-2007/09 1.5L Diesel K9K (82 hp / 60 kW) Front wheel drive.
K12E. 1500cc. 3D. K9K. turbo. Diz.63KW 2005/01-2007/09 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.48KW 2004/04-2007/09 1.5L Diesel K9K (65 hp / 48 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.50KW 2005/01-2007/09 1.5L Diesel K9K (68 hp / 50 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.60KW 2004/04-2007/09 1.5L Diesel K9K (82 hp / 60 kW) Front wheel drive.
K12E. 1500cc. 5D. K9K. turbo. Diz.63KW 2005/01-2007/09 1.5L Diesel K9K (86 hp / 63 kW) Front wheel drive.
K12E. 1600cc. 3D. HR16DE 2005/05-2007/09 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.
K12E. 1600cc. 5D. HR16DE 2005/05-2007/09 1.6L Petrol HR16DE EGI (110 hp / 81 kW) Front wheel drive.

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
ME-N081R
