MASUMA TIE ROD END
VENDOR CODE: ME-T291R

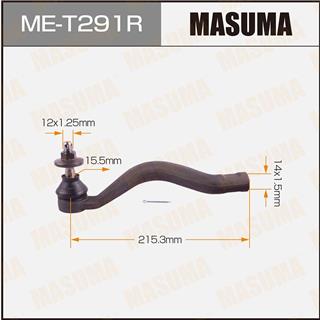

Remark: External Thread x Female Thread:12x1.25mm Taper Diameter:15.5mm External Thread x Female Thread:14x1.5mm Center Distance:215.3mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
4546039715
C4407R
CE0777
CET-162
SE-T291R
GS350
Chassis No. Year Configuration
GRL15 2011/12-2015/01 3.5L Petrol 2GRFSE D-4S (310 hp / 228 kW) Four wheel drive (4WD).
GRL15L 2012/01-2015/01 3.5L Petrol 2GRFSE EFI (317 hp / 233 kW) Four wheel drive (4WD).
GRL15L 2011/12-2015/01 3.5L Petrol 2GRFSE EFI (317 hp / 233 kW) Four wheel drive (4WD).
GRS196 2005/08-2011/12 3.5L Petrol 2GRFSE D-4S (303 hp / 223 kW) Four wheel drive (4WD).
GRS196L 2009/07-2011/12 3.5L Petrol 2GRFSE EFI (316 hp / 232 kW) Four wheel drive (4WD).
GRS196L 2006/07-2011/12 3.5L Petrol 2GRFSE EFI (316 hp / 232 kW) Four wheel drive (4WD).
GS300
Chassis No. Year Configuration
GRS195L 2005/01-2006/07 3.0L Petrol 3GRFSE EFI (249 hp / 183 kW) Four-wheel drive (4WD).
RC350
Chassis No. Year Configuration
GSC15L 2014/09-2021/12 3.5L Petrol 2GRFSE EFI (310 hp / 228 kW) Four wheel drive (4WD).
IS250
Chassis No. Year Configuration
GSE25 2005/08-2013/04 2.5L Petrol 4GRFSE D-4 (208 hp / 153 kW) Four wheel drive (4WD).
GSE25L 2005/08-2013/04 2.5L Petrol 4GRFSE EFI (208 hp / 153 kW) Four wheel drive (4WD).
GSE35L 2013/04-2015/08 2.5L Petrol 4GRFSE D-4 (208 hp / 153 kW) Four wheel drive (4WD).
IS350
Chassis No. Year Configuration
GSE26L 2010/08-2013/04 3.5L Petrol 2GRFSE EFI (318 hp / 234 kW) Four wheel drive (4WD).
GSE36L 2013/04- 3.5L Petrol 2GRFSE D-4S (310 hp / 228 kW) Four wheel drive (4WD).
CROWN
Chassis No. Year Configuration
AWS211 2014/07-2018/05 2.5L Petrol 2ARFSE D-4 (179 hp / 131 kW) Four wheel drive (4WD).
GRS181 2004/08-2008/02 2.5L Petrol 4GRFSE D-4 (215 hp / 158 kW) Four wheel drive (4WD).
GRS183 2003/12-2008/02 3.0L Petrol 3GRFSE (256 hp / 188 kW) Four-wheel drive (4WD).
GRS201 2008/02-2012/12 2.5L Petrol 4GRFSE D-4 (215 hp / 158 kW) Four wheel drive (4WD).
GRS203 2008/02-2012/12 3.0L Petrol 3GRFSE (256 hp / 188 kW) Four-wheel drive (4WD).
GRS211 2012/12-2018/05 2.5L Petrol 4GRFSE D-4 Four wheel drive (4WD).
CROWN MAJESTA
Chassis No. Year Configuration
AWS215 2014/07-2018/05 2.5L Petrol 2ARFSE D-4 (178 hp / 131 kW) Four-wheel drive (4WD).
UZS187 2004/06-2008/12 4.3L Petrol 3UZFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
UZS207 2009/03-2013/07 4.3L Petrol 3UZFE EFI (280 hp / 206 kW) Four-wheel drive (4WD).
MARK X
Chassis No. Year Configuration
GRX125 2004/11-2009/09 2.5L Petrol 4GRFSE D-4 (215 hp / 158 kW) Four wheel drive (4WD).
GRX135 2009/01-2019/12 2.5L Petrol 4GRFSE D-4 Four wheel drive (4WD).

Masuma tie rod ends are manufactured using state-of-the-art non-separable technology. The details of the ball bearings of the tips are made of Cr40 alloy steel with hardening . The mirror processing technology ensures that the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the hinge. The design and processing technology of the ball joint ensure that even with large angular loads, the ball joint will not jump out of its regular seat.

Guarantee for steering tips 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
ME-T291R
