ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
13506-31010
13507-31010
13521-31030
13521-31060
13523-31030
13530-31010
13530-31011
13540-31010
13540-31011
13550-31010
13559-31010
13560-31010
13561-31010
13562-31010
TOYOTA
HILUX
| Chassis No. | Year | Configuration |
|---|---|---|
| GGN15R | 2011/07-2013/08 | 4.0L Petrol 1GRFE EFI (238 hp / 175 kW) Rear wheel drive. |
| GGN15R | 2005/02-2011/07 | 4.0L Petrol 1GRFE EFI (238 hp / 175 kW) Rear wheel drive. |
| GGN15R | 2011/07-2013/08 | 4.0L Petrol 1GRFE EFI (270 hp / 199 kW) Rear wheel drive. |
| GGN25L | 2012/04- | 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Four-wheel drive (4WD). |
| GGN25L | 2005/07-2012/04 | 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Four-wheel drive (4WD). |
| GGN25L | 2009/03-2010/09 | 4.0L Petrol 1GRFE EFI (238 hp / 175 kW) Four-wheel drive (4WD). |
| GGN25R | 2005/02-2011/07 | 4.0L Petrol 1GRFE EFI (163 hp / 120 kW) Four-wheel drive (4WD). |
| GGN25R | 2005/04-2011/07 | 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Four-wheel drive (4WD). |
| GGN25R | 2011/08-2015/12 | 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Four-wheel drive (4WD). |
| GGN25R | 2005/02-2011/07 | 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Four-wheel drive (4WD). |
| GGN25R | 2005/02-2011/07 | 4.0L Petrol 1GRFE EFI (238 hp / 175 kW) Four-wheel drive (4WD). |
| GGN25R | 2011/07-2013/08 | 4.0L Petrol 1GRFE EFI (238 hp / 175 kW) Four-wheel drive (4WD). |
| GGN35R | 2011/08-2015/12 | 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Rear wheel drive. |
| GGN35R | 2008/01-2011/07 | 4.0L Petrol 1GRFE EFI (238 hp / 175 kW) Rear wheel drive. |
LAND CRUISER PRADO
| Chassis No. | Year | Configuration |
|---|---|---|
| GRJ120L | 2003/01-2009/08 | 4.0L Petrol 1GRFE EFI (276 hp / 203 kW) Four-wheel drive (4WD). |
| GRJ120W | 2005/08-2009/08 | 4.0L Petrol 1GRFE EFI (249 hp / 183 kW) Four-wheel drive (4WD). |
| GRJ121W | 2005/08-2009/08 | 4.0L Petrol 1GRFE EFI (249 hp / 183 kW) Four-wheel drive (4WD). |
| GRJ125L | 2003/01-2009/08 | 4.0L Petrol 1GRFE EFI (249 hp / 183 kW) Four-wheel drive (4WD). |
LAND CRUISER
| Chassis No. | Year | Configuration |
|---|---|---|
| GRJ71L | 2009/07- | 4.0L Petrol 1GRFE EFI (228 hp / 168 kW) Four-wheel drive (4WD). |
| GRJ71R | 2009/07-2012/08 | 4.0L Petrol 1GRFE EFI (228 hp / 168 kW) Four-wheel drive (4WD). |
| GRJ78L | 2009/07- | 4.0L Petrol 1GRFE EFI (228 hp / 168 kW) Four-wheel drive (4WD). |
| GRJ78R | 2009/07-2012/08 | 4.0L Petrol 1GRFE EFI (228 hp / 168 kW) Four-wheel drive (4WD). |
| GRJ79L | 2009/07- | 4.0L Petrol 1GRFE EFI (228 hp / 168 kW) Four-wheel drive (4WD). |
| GRJ79R | 2009/07- | 4.0L Petrol 1GRFE EFI (231 hp / 170 kW) Four-wheel drive (4WD). |
4RUNNER
| Chassis No. | Year | Configuration |
|---|---|---|
| GRN210L | 2002/11-2009/08 | 4.0L Petrol 1GRFE EFI (235 hp / 173 kW) Rear wheel drive. |
| GRN215L | 2002/11-2009/08 | 4.0L Petrol 1GRFE EFI (245 hp / 180 kW) Four-wheel drive (4WD). |
HILUX SURF
| Chassis No. | Year | Configuration |
|---|---|---|
| GRN215W | 2005/08-2009/08 | 4.0L Petrol 1GRFE EFI (249 hp / 183 kW) Four-wheel drive (4WD). |
TACOMA
| Chassis No. | Year | Configuration |
|---|---|---|
| GRN225L | 2004/09-2008/05 | 4.0L Petrol 1GRFE EFI (236 hp / 174 kW) Rear wheel drive. |
| GRN245L | 2004/09-2008/05 | 4.0L Petrol 1GRFE EFI (245 hp / 180 kW) Four-wheel drive (4WD). |
| GRN250L | 2004/09-2008/05 | 4.0L Petrol 1GRFE EFI (236 hp / 174 kW) Four-wheel drive (4WD). |
| GRN265L | 2004/09-2008/05 | 4.0L Petrol 1GRFE EFI (236 hp / 174 kW) Rear wheel drive. |
| GRN265L | 2004/09-2008/05 | 4.0L Petrol 1GRFE EFI (245 hp / 180 kW) Rear wheel drive. |
| GRN270L | 2004/09-2008/05 | 4.0L Petrol 1GRFE EFI (236 hp / 174 kW) Rear wheel drive. |
FJ CRUISER
| Chassis No. | Year | Configuration |
|---|---|---|
| GSJ10L | 2006/01-2009/08 | 4.0L Petrol 1GRFE EFI (239 hp / 176 kW) Rear wheel drive. |
| GSJ15L | 2006/01-2009/08 | 4.0L Petrol 1GRFE EFI (258 hp / 190 kW) Four-wheel drive (4WD). |
TUNDRA
| Chassis No. | Year | Configuration |
|---|---|---|
| GSK30L | 2004/08-2006/08 | 4.0L Petrol 1GRFE EFI (236 hp / 174 kW) Rear wheel drive. |
| GSK30L | 2004/08-2006/12 | 4.0L Petrol 1GRFE EFI (236 hp / 174 kW) Rear wheel drive. |

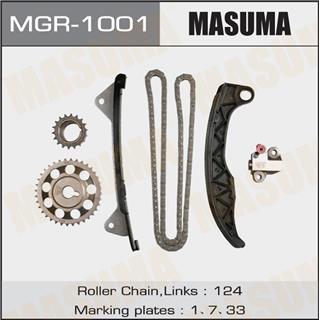

Timing chain replacement kit MASUMA MGR-1001 for 1KR-FE engine , which was installed on TOYOTA (AYGO, PASSO, VITZ, YARIS, YARIS) cars.
Equipment:
- Timing chain (Number of links - 124; marking - 1, 7, 33)
- Timing chain tensioner
- Timing chain tensioner bar
- Timing chain guide
- crankshaft gear
- Camshaft gear
Masuma produces a complete timing chain replacement kit , which allows you to comprehensively service the timing mechanism. Masuma timing chains are made from high quality alloys that are wear resistant and durable. The rollers of the chain undergo a nitrocarburizing process , due to which they have a hardened surface layer.
- Tensile strength (mechanical stress): 13KN (~1325 kg)
- Outer plate (material - 40Mn, hardness - 47-51HRC)
- Inner plate (material - 50CrV, hardness - 48-52HRC)
- Pin (material - 38CrMoAl, hardness - 88-92HR15N)
- Roller (material - 20CrNiMo, hardness - 88-92HE15N, nitrocarburizing - 0.15-0.25 mm)
Masuma timing chain tensioner shoes effectively reduce the vibration amplitude of the timing chain. Coated with a heavy-duty polymer material for a long service life.
Masuma timing chain dampers dampen residual vibration after the tensioner by preventing the chain from slipping off the sprockets on the camshafts and crankshafts. Reduce noise level. A comprehensive replacement of all parts of the assembly ensures the correct operation of the timing.
Laboratory tests showed that slight shifts in the valve timing began after 19,102 hours of operation at variable loads (bench tests were carried out on engines - 1ZZ-FE, SR20). The ""running stand"" showed - a slight shift in the phase angle, gas distribution began after 357,000 km. Real world testing ~ 241,000 - 287,000 km. Summing up the results of the tests, the life of the Masuma timing chain kit is at least 200,000 km.
Guarantee for the timing chain kit is 24 months or 80 thousand km. mileage only if timing chain kits are installed at Vehicle Service Stations or Authorized Service Centers. Do-it-yourself timing chain kits come with a 14-day limited warranty from date of purchase.
Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.
| MASUMA No. | ||||||
|---|---|---|---|---|---|---|

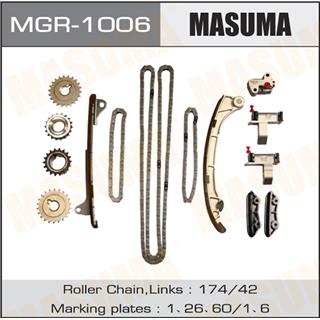

| MGR-1006 |
