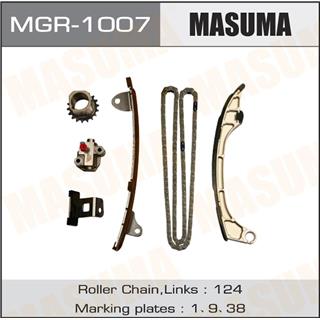

MASUMA TIMING CHAIN KIT Product MGR-1007 | China Auto Electrical Systems Suppliers, Manufacturers, Factory - Wholesale Auto Electrical Systems for Sale

The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.

ENQUIRY

ABOUT THE PRODUCT

APPLICABILITY

OEM

BRAND NUMBER

13506-36010

13521-36010

13540-36010

13540-36040

13559-36010

13561-36010

13566-36010

13566-36011

LEXUS

RX270

Chassis No.	Year	Configuration
AGL10L	2010/08-2014/07	2.7L Petrol 1ARFE EFI (188 hp / 138 kW) Front wheel drive.
AGL10W	2010/08-2014/07	2.7L Petrol 1ARFE EFI (188 hp / 138 kW) Front wheel drive.

ES250

Chassis No.	Year	Configuration
ASV60L	2012/06-2018/06	2.5L Petrol 2ARFE EFI (184 hp / 135 kW) Front wheel drive.

ES300H

Chassis No.	Year	Configuration
AVV60L	2012/06-2014/07	2.5L Petrol 2ARFXE EFI (160 HP / 118 kW) Front wheel drive.
AVV60L	2012/06-2015/07	2.5L Petrol 2ARFXE EFI (160 HP / 118 kW) Front wheel drive.

NX300H

Chassis No.	Year	Configuration
AYZ10L	2014/07-2014/08	2.5L Petrol 2ARFXE EFI (155 hp / 114 kW) Front wheel drive.
AYZ15L	2014/07-2014/08	2.5L Petrol 2ARFXE EFI (155 hp / 114 kW) Four wheel drive (4WD).

TOYOTA

VENZA

Chassis No.	Year	Configuration
AGV10L	2009/01-2012/05	2.7L Petrol 1ARFE EFI (182 hp / 134 kW) Front wheel drive.
AGV15L	2009/01-2012/05	2.7L Petrol 1ARFE EFI (182 hp / 134 kW) Four-wheel drive (4WD).

RAV4

Chassis No.	Year	Configuration
ASA33L	2008/11-2013/01	2.5L Petrol 2ARFE EFI (179 hp / 132 kW) Four-wheel drive (4WD).
ASA38L	2008/11-2013/01	2.5L Petrol 2ARFE EFI (179 hp / 132 kW) Front wheel drive.
ASA38L	2008/08-2012/12	2.5L Petrol 2ARFE EFI (179 hp / 132 kW) Front wheel drive.
ASA38L	2009/04-2013/01	2.5L Petrol 2ARFE EFI (179 hp / 132 kW) Front wheel drive.
ASA42L	2013/01-2014/07	2.5L Petrol 2ARFE EFI (176 hp / 129 kW) Front wheel drive.
ASA42L	2012/12-2014/07	2.5L Petrol 2ARFE EFI (180 hp / 132 kW) Front wheel drive.
ASA44L	2013/01-2014/07	2.5L Petrol 2ARFE EFI (176 hp / 129 kW) Four wheel drive (4WD).
ASA44L	2012/12-2014/07	2.5L Petrol 2ARFE EFI (180 hp / 132 kW) Four wheel drive (4WD).

SIENNA

Chassis No.	Year	Configuration
ASL30L	2010/05-2013/08	2.7L Petrol 1ARFE EFI (187 hp / 138 kW) Front wheel drive.

HIGHLANDER

Chassis No.	Year	Configuration
ASU40L	2008/11-2010/07	2.7L Petrol 1ARFE EFI (187 hp / 138 kW) Front wheel drive.
ASU40L	2010/08-2013/12	2.7L Petrol 1ARFE EFI (187 hp / 138 kW) Front wheel drive.
ASU40L	2009/01-2010/08	2.7L Petrol 1ARFE EFI (187 hp / 138 kW) Front wheel drive.

CAMRY

Chassis No.	Year	Configuration
ASV40L	2009/01-2011/08	2.5L Petrol 2ARFE EFI (179 hp / 132 kW) Front wheel drive.
ASV40L	2009/03-2011/09	2.5L Petrol 2ARFE EFI (179 hp / 132 kW) Front wheel drive.
ASV50L	2011/09-2014/07	2.5L Petrol 2ARFE EFI (178 hp / 131 kW) Front wheel drive.
ASV50L.EUR	2011/08-2014/07	2.5L Petrol 2ARFE EFI (181 hp / 133 kW) Front wheel drive.
ASV50L.RUS	2011/08-2014/07	2.5L Petrol 2ARFE EFI (181 hp / 133 kW) Front wheel drive.
AVV50	2011/08-2014/07	2.5L Petrol 2ARFXE EFI Front wheel drive.
AVV50L	2011/01-2014/07	2.5L Petrol 2ARFXE EFI (160 HP / 118 kW) Front wheel drive.
AVV50L.EUR	2011/08-2014/07	2.5L Petrol 2ARFXE EFI (160 HP / 118 kW) Front wheel drive.

HARRIER

Chassis No.	Year	Configuration
AVU65W	2014/01-2014/07	2.5L Petrol 2ARFXE EFI (152 hp / 112 kW) Four wheel drive (4WD).

AVALON

Chassis No.	Year	Configuration
AVX40L	2012/11-2014/07	2.5L Petrol 2ARFXE EFI (154 hp / 113 kW) Front wheel drive.

Timing chain replacement kit MASUMA MGR-1001 for 1KR-FE engine , which was installed on TOYOTA (AYGO, PASSO, VITZ, YARIS, YARIS) cars.

Equipment:

Timing chain (Number of links - 124; marking - 1, 7, 33)
Timing chain tensioner
Timing chain tensioner bar
Timing chain guide
crankshaft gear
Camshaft gear

Masuma produces a complete timing chain replacement kit , which allows you to comprehensively service the timing mechanism. Masuma timing chains are made from high quality alloys that are wear resistant and durable. The rollers of the chain undergo a nitrocarburizing process , due to which they have a hardened surface layer.

Tensile strength (mechanical stress): 13KN (~1325 kg)
Outer plate (material - 40Mn, hardness - 47-51HRC)
Inner plate (material - 50CrV, hardness - 48-52HRC)
Pin (material - 38CrMoAl, hardness - 88-92HR15N)
Roller (material - 20CrNiMo, hardness - 88-92HE15N, nitrocarburizing - 0.15-0.25 mm)

Masuma timing chain tensioner shoes effectively reduce the vibration amplitude of the timing chain. Coated with a heavy-duty polymer material for a long service life.

Masuma timing chain dampers dampen residual vibration after the tensioner by preventing the chain from slipping off the sprockets on the camshafts and crankshafts. Reduce noise level. A comprehensive replacement of all parts of the assembly ensures the correct operation of the timing.

Laboratory tests showed that slight shifts in the valve timing began after 19,102 hours of operation at variable loads (bench tests were carried out on engines - 1ZZ-FE, SR20). The ""running stand"" showed - a slight shift in the phase angle, gas distribution began after 357,000 km. Real world testing ~ 241,000 - 287,000 km. Summing up the results of the tests, the life of the Masuma timing chain kit is at least 200,000 km.

Guarantee for the timing chain kit is 24 months or 80 thousand km. mileage only if timing chain kits are installed at Vehicle Service Stations or Authorized Service Centers. Do-it-yourself timing chain kits come with a 14-day limited warranty from date of purchase.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.
