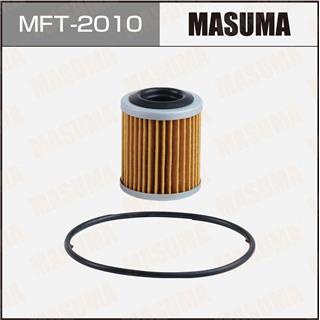

MASUMA TRANSMISSION FILTER
VENDOR CODE: MFT-2010
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
2824A006
2824A025
2824A028
31020-1XF06
31020-1XF0B
31020-1XF0C
31020-1XF6A
31020-1XT4A
31020-3UX8B
31726-1XF00
31726-1XZ0A
DELICA D:5
Chassis No. Year Configuration
CV2W 2011/12-2019/11 2.0L Petrol 4J11 ECI-MULTI (150 HP / 110 kW) Front wheel drive.
CV4W 2009/12-2011/12 2.0L Petrol 4B11 MPI (150 HP / 110 kW) Front wheel drive.
CV5W 2006/12-2019/11 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
CV5W 2006/12-2009/11 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Front wheel drive.
OUTLANDER
Chassis No. Year Configuration
CW4W 2009/12-2012/01 2.0L Petrol 4B11 MPI (160 hp / 118 kW) Four-wheel drive (4WD).
CW4W 2009/12-2012/01 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.2WD.EUR 2009/09-2012/07 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.2WD.EUR 2009/09-2012/08 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.2WD.RUS 2010/06-2012/04 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.2WD.RUS 2009/06-2012/04 2.0L Petrol 4B11 MPI (160 HP / 118 kW) Front wheel drive.
CW4W.4WD.RUS 2009/06-2012/07 2.0L Petrol 4B11 MPI (147 hp / 108 kW) Four-wheel drive (4WD).
CW4W.4WD.RUS 2010/06-2012/04 2.0L Petrol 4B11 MPI (160 hp / 118 kW) Four-wheel drive (4WD).
CW5W 2005/09-2012/01 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
CW5W 2008/08-2012/01 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Front wheel drive.
CW5W.2WD.EUR 2008/08-2009/09 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Front wheel drive.
CW5W.2WD.EUR 2007/06-2009/09 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Front wheel drive.
CW5W.4WD.EUR 2008/08-2012/04 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
CW5W.4WD.EUR 2007/06-2012/04 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
CW5W.4WD.RUS 2010/06-2012/04 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
CW5W.4WD.RUS 2007/06-2012/04 2.4L Petrol 4B12 MPI (170 hp / 125 kW) Four-wheel drive (4WD).
GF2W.2WD.EUR 2012/04- 2.0L Petrol 4B11 MPI (146 hp / 107 kW) Front wheel drive.
GF2W.2WD.RUS 2012/11- 2.0L Petrol 4B11 MPI (143 hp / 105 kW) Front wheel drive.
GF2W.4WD.EUR 2012/04- 2.0L Petrol 4B11 MPI (146 hp / 107 kW) Four-wheel drive (4WD).
GF2W.4WD.RUS 2012/11- 2.0L Petrol 4B11 MPI (146 hp / 107 kW) Four-wheel drive (4WD).
GF3W.4WD.EUR 2012/04- 2.4L Petrol 4B12 MPI (169 hp / 124 kW) Four-wheel drive (4WD).
GF3W.4WD.RUS 2012/11- 2.4L Petrol 4B12 MPI (169 hp / 124 kW) Four-wheel drive (4WD).
GF7W 2012/08- 2.0L Petrol 4J11 ECI-MULTI (150 HP / 110 kW) Front wheel drive.
GF7W.4WD.EUR 2012/07- 2.0L Petrol 4J11 ECI-MULTI (160 HP / 118 kW) Four-wheel drive (4WD).
GF8W 2012/08- 2.4L Petrol 4J12 ECI-MULTI (169 hp / 124 kW) Four-wheel drive (4WD).
GALANT FORTIS SPORTBACK
Chassis No. Year Configuration
CX3A 2009/12-2011/01 1.8L Petrol 4B10 MPI (143 hp / 105 kW) Four-wheel drive (4WD).
CX3A 2009/12-2011/01 1.8L Petrol 4B10 MPI (143 hp / 105 kW) Front wheel drive.
CX4A 2008/11-2009/11 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Four-wheel drive (4WD).
CX4A 2008/11-2009/11 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Front wheel drive.
CX6A 2011/01-2015/04 1.8L Petrol 4J10 ECI-MULTI (143 hp / 105 kW) Four-wheel drive (4WD).
CX6A 2011/01-2015/04 1.8L Petrol 4J10 ECI-MULTI (143 hp / 105 kW) Front wheel drive.
LANCER SPORTBACK
Chassis No. Year Configuration
CX3A.2WD.ENG 2008/07-2011/09 1.8L Petrol 4B10 MPI (140 HP / 103 kW) Front wheel drive.
CX3A.2WD.EUR 2008/07-2011/01 1.8L Petrol 4B10 MPI (140 HP / 103 kW) Front wheel drive.
CX6A.2WD.EUR 2011/01-2015/02 1.8L Petrol 4J10 ECI-MULTI (143 hp / 105 kW) Front wheel drive.
GALANT FORTIS
Chassis No. Year Configuration
CY3A 2009/12-2011/01 1.8L Petrol 4B10 MPI (140 hp / 103 kW) Four-wheel drive (4WD).
CY3A 2009/12-2011/01 1.8L Petrol 4B10 MPI (140 HP / 103 kW) Front wheel drive.
CY4A 2007/08-2009/12 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Four-wheel drive (4WD).
CY4A 2007/08-2009/12 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Front wheel drive.
CY6A 2011/01-2015/04 1.8L Petrol 4J10 ECI-MULTI (139 HP / 102 kW) Four-wheel drive (4WD).
CY6A 2011/01-2015/04 1.8L Petrol 4J10 ECI-MULTI (139 HP / 102 kW) Front wheel drive.
LANCER
Chassis No. Year Configuration
CY3A.2WD.EUR 2007/11-2011/01 1.8L Petrol 4B10 MPI (143 hp / 105 kW) Front wheel drive.
CY3A.2WD.RUS 2007/11-2015/03 1.8L Petrol 4B10 MPI (140 HP / 103 kW) Front wheel drive.
CY4A 2007/12-2012/07 2.0L Petrol 4B11 MPI (145 hp / 107 kW) Four-wheel drive (4WD).
CY4A.2WD.EUR 2008/07-2009/06 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Front wheel drive.
CY4A.2WD.RUS 2007/03-2012/07 2.0L Petrol 4B11 MPI (154 hp / 113 kW) Front wheel drive.
CY6A 2011/01-2015/03 1.8L Petrol 4J10 ECI-MULTI (139 HP / 102 kW) Front wheel drive.
ASX
Chassis No. Year Configuration
GA2W.2WD.EUR 2012/09-2015/12 2.0L Petrol 4B11 MPI (150 HP / 110 kW) Front wheel drive.
GA2W.2WD.RUS 2010/05- 2.0L Petrol 4B11 MPI (147 hp / 108 kW) Front wheel drive.
GA2W.4WD.EUR 2012/09-2015/12 2.0L Petrol 4B11 MPI (150 HP / 110 kW) Four-wheel drive (4WD).
GA2W.4WD.RUS 2010/05- 2.0L Petrol 4B11 MPI (148 hp / 109 kW) Four-wheel drive (4WD).
GA2W.4WD.RUS 2012/09-2015/12 2.0L Petrol 4B11 MPI (150 HP / 110 kW) Four-wheel drive (4WD).
GA3W.2WD.EUR 2012/09-2015/12 1.8L Petrol 4B10 MPI (140 HP / 103 kW) Front wheel drive.
GA3W.2WD.RUS 2010/05-2013/03 1.8L Petrol 4B10 MPI (139 hp / 102 kW) Front wheel drive.
RVR
Chassis No. Year Configuration
GA3W.2WD 2010/02-2012/01 1.8L Petrol 4B10 MPI (139 hp / 102 kW) Front wheel drive.
GA3W.4WD 2010/02-2011/01 1.8L Petrol 4B10 MPI (139 hp / 102 kW) Four-wheel drive (4WD).
GA4W.2WD 2011/01- 1.8L Petrol 4J10 ECI-MULTI (139 HP / 102 kW) Front wheel drive.
GA4W.4WD 2011/01- 1.8L Petrol 4J10 ECI-MULTI (139 HP / 102 kW) Four-wheel drive (4WD).
ECLIPSE CROSS
Chassis No. Year Configuration
GK1W 2018/02- 1.5L Petrol 4B40 MPI (150 HP / 110 kW) Four wheel drive (4WD).
GK1W 2018/02- 1.5L Petrol 4B40 MPI (152 hp / 112 kW) Front wheel drive.
GK1W.2WD 2017/01- 1.5L Petrol 4B40 MPI (150 HP / 110 kW) Front wheel drive.
GK1W.4WD 2017/01- 1.5L Petrol 4B40 MPI (163 hp / 120 kW) Four wheel drive (4WD).
SERENA
Chassis No. Year Configuration
C25 2005/05-2010/11 2.0L Gasoline MR20DE EGI (147 HP / 108 kW) Front wheel drive.
C26 2010/11-2016/08 2.0L Gasoline MR20DD EGI (150 HP / 110 kW) Front wheel drive.
CC25 2006/06-2010/11 2.0L Gasoline MR20DE EGI (147 HP / 108 kW) Front wheel drive.
CNC25 2006/06-2010/11 2.0L Gasoline MR20DE EGI (147 hp / 108 kW) Four wheel drive (4WD).
FC26 2010/11-2012/08 2.0L Gasoline MR20DD EGI (147 HP / 108 kW) Front wheel drive.
FNC26 2010/11-2016/08 2.0L Gasoline MR20DD EGI (147 HP / 108 kW) Four wheel drive (4WD).
FNPC26 2015/11-2016/08 2.0L Gasoline MR20DD EGI Four wheel drive (4WD).
FPC26 2015/11-2016/08 2.0L Gasoline MR20DD EGI Front wheel drive.
HC26 2012/08-2016/08 2.0L Gasoline MR20DD EGI (147 HP / 108 kW) Front wheel drive.
HFC26 2012/08-2016/08 2.0L Gasoline MR20DD EGI (147 HP / 108 kW) Front wheel drive.
NC25 2005/05-2010/11 2.0L Gasoline MR20DE EGI (147 hp / 108 kW) Four wheel drive (4WD).
NC26 2010/11-2016/08 2.0L Gasoline MR20DD EGI (147 HP / 108 kW) Four wheel drive (4WD).
JUKE
Chassis No. Year Configuration
F15 2010/11-2014/07 1.6L Petrol MR16DDT DIG (190 HP / 140 kW) Front wheel drive.
F15. 1600cc. MR16DDT. turbo. 4WD. JAPAN. 2010/07-2011/01 1.6L Gasoline MR16DDT DIG (190 HP / 140 kW) Four wheel drive (4WD).
F15E. 1600cc. MR16DDT. turbo. UK. 2010/07-2014/05 1.6L Petrol MR16DDT DIG (190 HP / 140 kW) Front wheel drive.
F15E. 1600cc. MR16DDT. turbo. UK. 2014/07-2020/01 1.6L Petrol MR16DDT DIG (190 HP / 140 kW) Front wheel drive.
NF15 2014/07-2014/11 1.6L Gasoline MR16DDT DIG (190 HP / 140 kW) Four wheel drive (4WD).
NF15 2010/11-2014/07 1.6L Gasoline MR16DDT DIG (190 HP / 140 kW) Four wheel drive (4WD).
NF15 2014/11-2020/06 1.6L Gasoline MR16DDT DIG (190 HP / 140 kW) Four wheel drive (4WD).
TEANA
Chassis No. Year Configuration
J32 2008/06-2014/02 2.5L Petrol VQ25DE EGI (185 hp / 136 kW) Front wheel drive.
J32. 2500cc. VQ25DE 2008/02-2014/02 2.5L Petrol VQ25DE EGI (185 hp / 136 kW) Front wheel drive.
TNJ32 2008/06-2014/02 2.5L Gasoline QR25DE EGI (167 hp / 123 kW) Four wheel drive (4WD).
X-TRAIL
Chassis No. Year Configuration
NT31 2007/08-2008/08 2.0L Gasoline MR20DE (140 hp / 103 kW) Four wheel drive (4WD).
ELGRAND
Chassis No. Year Configuration
TE52 2010/08- 2.5L Gasoline QR25DE EGI (170 HP / 125 kW) Front wheel drive.
TNE52 2010/08- 2.5L Gasoline QR25DE EGI (170 HP / 125 kW) Four wheel drive (4WD).

Masuma transmission filters provide high-quality cleaning of the transmission fluid from metal wearing products. Filtration is provided by two types of material: metal mesh and felt membrane.

Metal mesh is an oil strainer which retains coarse impurities. The felt layer due to its fine-pored structure, effectively retains metal chips and dust that appear in result of parts wearing. The filtration materials provide both careful cleaning and the required conductivity for transmission fluid.

Equipment

All the Masuma transmission filters are equipped with gaskets for the engine oil pan (crankcase), except the filters for crankcases, which require sealant by design.

Masuma is a world brand for spare parts, accessories and consumable items for cars. The main brand field is consumables for post-warranty service of the Japanese cars. The company strategy is offering the customers the best reliability and price balance for parts. All the products are produced at dozens of plants, located in East Asia, by the order, technologies and under control of the head company, which is Masuma Auto Spare Parts Co., LTD (Tokyo, Japan).

MASUMA No. JS No.
MFT-2010 JT503
