MASUMA V-BELT
VENDOR CODE: 6485

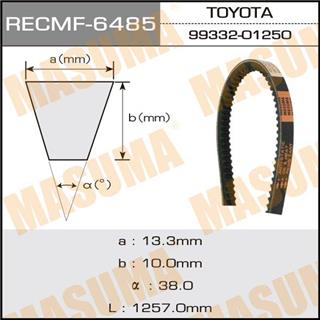

Remark: a : 13.3mm b : 10.0mm α: 38.0 L: 1257.0mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
02117-25023
02117-25523
02117-26023
11750-N9520
90916-02527
90916-02528
99322-01250
99322-11250
99322-51250
99332-01245
99332-01250
99332-11245
99332-61240
99342-01245
99342-11245
99342-11250
AY160-VA485
AY16N-VH255
HIACE
Chassis No. Year Configuration
LH100G 1991/02-1993/08 2.4L Diesel 2LTE EFI (97 hp / 71 kW) Rear wheel drive.
LH103V 1996/08-1998/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH103V 1993/08-1995/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH107G 1989/08-1993/08 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LH107W 1990/01-1991/02 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LH107W 1991/02-1993/08 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LH109V 1991/02-1998/08 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LH109V 1989/08-1993/08 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LH113K 1993/08-1995/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH113K 1996/08-1998/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH113V 1993/08-1995/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH113V 1996/08-1998/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH117G 1990/01-1993/08 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LH119V 1991/03-1998/08 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LH120G 1991/02-1993/08 2.4L Diesel 2LTE EFI (97 hp / 71 kW) Rear wheel drive.
LH123V 1993/08-1995/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH123V 1996/08-1998/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH125B 1996/08-1998/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH125B 1993/08-1995/08 2.8L Diesel 3L (91 hp / 67 kW) Rear wheel drive.
LH129V 1995/08-1998/08 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LH168V 1998/08-2004/08 3.0L Diesel 5L (91 hp / 67 kW) Four-wheel drive (4WD).
LH178V 1998/08-2004/08 3.0L Diesel 5L (91 hp / 67 kW) Four-wheel drive (4WD).
LH186B 1998/08-2004/08 3.0L Diesel 5L (91 hp / 67 kW) Four-wheel drive (4WD).
LH188K 1998/08-2004/08 3.0L Diesel 5L (91 hp / 67 kW) Four-wheel drive (4WD).
HIACE TRUCKS
Chassis No. Year Configuration
LH85 1992/12-1993/09 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH85 1993/09-1995/05 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH85 1989/08-1993/09 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH85 1989/08-1993/09 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LH85 1992/12-1993/09 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LH85 1993/09-1995/05 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
LH95 1991/09-1993/09 2.4L Diesel 2L (83 hp / 61 kW) Four-wheel drive (4WD).
LH95 1991/09-1993/09 2.4L Diesel 2L (85 hp / 63 kW) Four-wheel drive (4WD).
HIACE REGIUS
Chassis No. Year Configuration
LXH43V 1997/06-1999/07 3.0L Diesel 5L (91 hp / 67 kW) Rear wheel drive.
LXH49V 1997/06-1999/07 3.0L Diesel 5L (91 hp / 67 kW) Four-wheel drive (4WD).
REGIUS
Chassis No. Year Configuration
LXH43V 2002/02-2002/05 3.0L Diesel 5L (91 hp / 67 kW) Rear wheel drive.
LXH43V 1999/07-2001/01 3.0L Diesel 5L (91 hp / 67 kW) Rear wheel drive.
LXH49V 1999/07-2001/01 3.0L Diesel 5L (91 hp / 67 kW) Four-wheel drive (4WD).
LXH49V 2002/02-2002/05 3.0L Diesel 5L (91 hp / 67 kW) Four-wheel drive (4WD).
DYNA
Chassis No. Year Configuration
LY151 1996/01-1999/05 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
LY151 1996/01-1999/05 2.8L Diesel 3L (97 hp / 67 kW) Four-wheel drive (4WD).
LY161 1996/01-1999/05 2.8L Diesel 3L (91 hp / 67 kW) Four-wheel drive (4WD).
TOYOACE
Chassis No. Year Configuration
LY20 1979/03-1982/01 2.2L Diesel L (72 hp / 53 kW) Rear wheel drive.
LY20 1979/03-1985/07 2.2L Diesel L (72 hp / 53 kW) Rear wheel drive.
LY20 1979/03-1983/08 2.2L Diesel L (72 hp / 53 kW) Rear wheel drive.
LY20V 1979/03-1983/08 2.2L Diesel L (72 hp / 53 kW) Rear wheel drive.
LY30 1981/01-1983/08 2.2L Diesel L (72 hp / 53 kW) Rear wheel drive.
LY30 1979/03-1983/08 2.2L Diesel L (72 hp / 53 kW) Rear wheel drive.
LY30V 1979/03-1982/01 2.2L Diesel L (72 hp / 53 kW) Rear wheel drive.
LY31 1983/08-1985/07 2.4L Diesel 2L (84 hp / 62 kW) Rear wheel drive.
LY31V 1983/08-1985/07 2.4L Diesel 2L (84 hp / 62 kW) Rear wheel drive.

Masuma's advanced V-profile (timing) drive belts with increased transverse flexibility are designed specifically for driving engine attachments. The main advantage of these belts is increased flexibility , which is provided by a special polyester cord, while flexibility is achieved without sacrificing strength.

Guarantee for driving belts of 12 months. Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No. MASUMA No.
6485 RECMF-6485
