MASUMA V-RIBBED BELT
VENDOR CODE: 4PK-1080

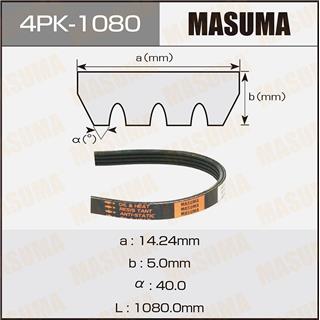

Remark: a : 14.24mm b : 5.0mm α : 40.0 L : 1080.0mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
17521-85090
57161H1300
99364-01080
99364-21080
99364-31080
99364-51080
99364-71080
99364-81080
99364-91080
AY140-41080
MD363024
ZZS2-18-381
PROCEED LEVANTE
Chassis No. Year Configuration
TF11W 1995/02-1996/01 2.0L Gasoline H20A EPI (136 hp / 100 kW) Four wheel drive (4WD).
TJ11W 1995/02-1996/01 2.0L Gasoline H20A EPI (140 HP / 103 kW) Four wheel drive (4WD).
TJ61W 1996/01-1997/11 2.5L Petrol H25A EPI (144 hp / 106 kW) Four wheel drive (4WD).
TJ62W 1998/02-1999/01 2.5L Petrol H25A EPI (165 hp / 121 kW) Four wheel drive (4WD).
PAJERO
Chassis No. Year Configuration
V25W 1999/02-1999/11 3.5L Petrol 6G74 GDI (245 hp / 180 kW) Four-wheel drive (4WD).
V45W 1999/01-1999/11 3.5L Petrol 6G74 GDI (220 hp / 162 kW) Four-wheel drive (4WD).
GRAND VITARA
Chassis No. Year Configuration
SQ625W-2. 2500cc. 5D. H25A. 4WD. 1999/01-2005/12 2.5L Gasoline H25A MPI (157 HP / 115 kW) Four wheel drive (4WD).
SQ625W-3. 2500cc. 5D. H25A. 4WD. 1999/01-2005/12 2.5L Gasoline H25A MPI (157 HP / 115 kW) Four wheel drive (4WD).
SQ625W. 2500cc. 5D. H25A. 4WD. 1999/01-2005/12 2.5L Gasoline H25A MPI (157 HP / 115 kW) Four wheel drive (4WD).
VITARA
Chassis No. Year Configuration
SV620-2. 2000cc. 5D. H20A. 4WD. 1997/05-1998/12 2.0L Gasoline H20A MPI (136 hp / 100 kW) Four-wheel drive (4WD).
SV620-3. 2000cc. 5D. H20A. 4WD. 1997/05-1998/12 2.0L Gasoline H20A MPI (136 hp / 100 kW) Four-wheel drive (4WD).
SV620. 2000cc. 5D. H20A. 4WD. 1997/05-1998/12 2.0L Gasoline H20A MPI (136 hp / 100 kW) Four-wheel drive (4WD).
ESCUDO
Chassis No. Year Configuration
TA11W 1994/11-1996/01 2.0L Gasoline H20A EPI (145 hp / 107 kW) Four-wheel drive (4WD).
TA11W 1994/12-1996/01 2.0L Gasoline H20A EPI (145 hp / 107 kW) Four-wheel drive (4WD).
TD11W 1994/12-1996/01 2.0L Gasoline H20A EPI (140 HP / 103 kW) Four wheel drive (4WD).
TD11W 1994/11-1996/01 2.0L Gasoline H20A EPI (140 HP / 103 kW) Four wheel drive (4WD).
TD61W 1996/01-1997/11 2.5L Gasoline H25A EPI (160 HP / 118 kW) Four wheel drive (4WD).
TD62W 1998/02-2003/06 2.5L Gasoline H25A EPI (160 HP / 118 kW) Four wheel drive (4WD).
COROLLA II
Chassis No. Year Configuration
EL41 1992/01-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL51 1994/09-1995/08 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1995/08-1996/08 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1994/09-1996/01 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
TERCEL
Chassis No. Year Configuration
EL41 1992/01-1992/08 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1992/08-1993/08 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1992/08-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1993/08-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1992/01-1993/08 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1992/01-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1993/08-1994/09 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1992/01-1993/08 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1992/01-1994/09 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1992/01-1992/08 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1992/08-1993/08 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1992/08-1994/09 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL51 1994/09-1996/01 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1995/02-1996/08 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1994/09-1995/08 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1994/09-1995/08 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
EL51 1994/09-1996/01 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
EL51 1995/02-1996/08 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
CORSA
Chassis No. Year Configuration
EL41 1992/01-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1992/01-1992/08 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1992/08-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1993/08-1994/09 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1992/01-1993/08 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EL41 1992/01-1992/08 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1992/08-1994/09 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1993/08-1994/09 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1992/01-1993/08 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL41 1992/01-1994/09 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Front wheel drive.
EL51 1994/09-1995/08 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1994/09-1996/01 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1995/08-1996/08 1.3L Petrol 4EFE EFI (85 hp / 63 kW) Front wheel drive.
EL51 1995/08-1996/08 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
EL51 1994/09-1995/08 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
EL51 1994/09-1996/01 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
CYNOS
Chassis No. Year Configuration
EL52 1995/08-1996/01 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
EL52 1995/08-1996/08 1.3L Petrol 4EFE EFI (88 hp / 65 kW) Front wheel drive.
STARLET
Chassis No. Year Configuration
EP82 1994/05-1995/05 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1994/01-1996/01 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1995/08-1996/01 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1993/12-1994/05 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1994/05-1994/01 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1994/01-1995/05 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1995/05-1995/08 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1989/12-1992/01 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1992/01-1993/12 1.3L Petrol 4EFE EFI (100 HP / 74 kW) Front wheel drive.
EP82 1993/12-1994/05 1.3L Petrol 4EFTE EFI (135 hp / 99 kW) Front wheel drive.
EP85 1990/08-1990/05 1.3L Petrol 4EF (82 hp / 60 kW) Four-wheel drive (4WD).
EP85 1990/08-1992/01 1.3L Petrol 4EF (82 hp / 60 kW) Four-wheel drive (4WD).
EP85 1995/08-1996/01 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP85 1992/01-1993/12 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP85 1994/05-1994/01 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP85 1994/01-1995/05 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP85 1995/05-1995/08 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP85 1992/01-1992/01 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP85 1993/12-1994/05 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP85 1994/05-1995/05 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
EP85 1994/01-1996/01 1.3L Petrol 4EFE EFI (97 hp / 71 kW) Four-wheel drive (4WD).
CALDINA
Chassis No. Year Configuration
ET196V 1992/11-1996/01 1.5L Petrol 5EFE EFI (100 HP / 74 kW) Front wheel drive.
SERA
Chassis No. Year Configuration
EXY10 1990/03-1993/11 1.5L Petrol 5EFHE EFI (110 HP / 81 kW) Front wheel drive.
CROWN
Chassis No. Year Configuration
GS130 1989/08-1991/01 2.0L Gas 1GGP LPG (110 HP / 81 kW) Rear wheel drive.
GS130 1988/09-1991/01 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS130G 1991/01-1991/01 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS130G 1988/09-1991/01 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS130W 1995/12-1999/04 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS130W 1995/12-1999/03 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS131H 1993/08-1995/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS131H 1995/08-1995/11 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS131H 1991/01-1993/09 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS131H 1993/09-1995/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS131H 1995/11-1995/12 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS136V 1989/08-1991/01 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS136V 1991/01-1991/01 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS141 1993/09-1995/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS141 1993/08-1993/09 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS151 1995/12-1998/08 2.0L Gas 1GGPE LPG EFI (110 HP / 81 kW) Rear wheel drive.
GS151 1995/12-1998/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GS151H 1995/12-1998/08 2.0L Gas 1GGPE LPG EFI (110 HP / 81 kW) Rear wheel drive.
GS151H 1995/08-1995/11 2.0L Petrol 1GFE EFI (140 HP / 103 kW) Rear wheel drive.
GS151H 1995/11-1998/08 2.0L Petrol 1GFE EFI (140 HP / 103 kW) Rear wheel drive.
GS151H 1995/12-1998/08 2.0L Petrol 1GFE EFI (160 HP / 118 kW) Rear wheel drive.
CHASER
Chassis No. Year Configuration
GX100 1996/09-1998/08 2.0L Petrol 1GFE EFI (140 HP / 103 kW) Rear wheel drive.
GX100 1996/09-1998/08 2.0L Petrol 1GFE EFI (160 HP / 118 kW) Rear wheel drive.
GX90 1994/09-1995/11 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX90 1992/01-1995/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX90 1995/11-1996/09 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
CRESTA
Chassis No. Year Configuration
GX100 1996/09-1998/08 2.0L Petrol 1GFE EFI (140 HP / 103 kW) Rear wheel drive.
GX100 1998/08-1998/08 2.0L Petrol 1GFE EFI (160 HP / 118 kW) Rear wheel drive.
GX90 1994/09-1995/11 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX90 1992/01-1995/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX90 1995/11-1996/09 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
MARK II
Chassis No. Year Configuration
GX100 1996/09-1998/08 2.0L Petrol 1GFE EFI (160 HP / 118 kW) Rear wheel drive.
GX81 1988/08-1991/01 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX81 1992/01-1993/02 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX81 1993/09-1995/11 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX81 1991/01-1992/01 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX81 1993/02-1995/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX81 1995/11-1995/12 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX81 1988/08-1993/02 2.0L Petrol 1GGE EFI (150 HP / 110 kW) Rear wheel drive.
GX90 1994/09-1995/11 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX90 1992/01-1995/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX90 1995/11-1996/09 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
MARK II WAGON
Chassis No. Year Configuration
GX70G 1988/01-1991/01 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX70G 1992/01-1995/11 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX70G 1991/01-1995/08 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.
GX70G 1995/11-1997/04 2.0L Petrol 1GFE EFI (135 hp / 99 kW) Rear wheel drive.

Masuma's advanced V-profile (timing) drive belts with increased transverse flexibility are designed specifically for driving engine attachments. The main advantage of these belts is increased flexibility , which is provided by a special polyester cord, while flexibility is achieved without sacrificing strength.

Guarantee for driving belts of 12 months. Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No.
4PK-1080
