MASUMA V-RIBBED BELT
VENDOR CODE: 7PK-1095

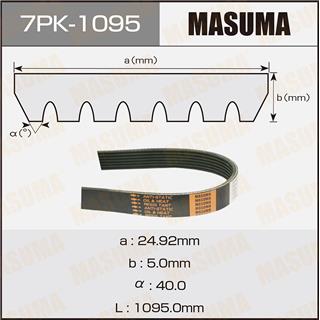

Remark: a : 24.92mm b : 5.0mm α : 40.0 L : 1095.0mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
90916-02523
90916-T2005
HIACE
Chassis No. Year Configuration
KDH200K 2004/08-2007/09 2.5L Diesel 2KDFTV (109 HP / 80 kW) Rear wheel drive.
KDH200V 2004/08-2007/09 2.5L Diesel 2KDFTV (109 HP / 80 kW) Rear wheel drive.
KDH201K 2007/09-2013/12 3.0L Diesel 1KDFTV (136 hp / 100 kW) Rear wheel drive.
KDH201V 2007/09-2013/12 3.0L Diesel 1KDFTV (136 hp / 100 kW) Rear wheel drive.
KDH201V 2013/12-2017/11 3.0L Diesel 1KDFTV (136 hp / 100 kW) Rear wheel drive.
KDH205K 2004/08-2007/09 2.5L Diesel 2KDFTV (109 hp / 80 kW) Four-wheel drive (4WD).
KDH205V 2004/08-2007/09 2.5L Diesel 2KDFTV (109 hp / 80 kW) Four-wheel drive (4WD).
KDH206K 2007/09-2013/12 3.0L Diesel 1KDFTV (136 hp / 100 kW) Four-wheel drive (4WD).
KDH206V 2007/09-2013/12 3.0L Diesel 1KDFTV (136 hp / 100 kW) Four-wheel drive (4WD).
TOYOACE
Chassis No. Year Configuration
KDY220 2004/08-2007/08 2.5L Diesel 2KDFTV (109 HP / 80 kW) Rear wheel drive.
KDY230 2004/08-2007/08 2.5L Diesel 2KDFTV (109 HP / 80 kW) Rear wheel drive.
KDY240V 2004/08-2007/08 2.5L Diesel 2KDFTV (109 HP / 80 kW) Rear wheel drive.
KDY270 2004/08-2007/08 2.5L Diesel 2KDFTV (109 hp / 80 kW) Four-wheel drive (4WD).
KDY280 2004/08-2007/08 2.5L Diesel 2KDFTV (109 hp / 80 kW) Four-wheel drive (4WD).
KDY290V 2004/08-2007/08 2.5L Diesel 2KDFTV (109 hp / 80 kW) Four-wheel drive (4WD).
DYNA
Chassis No. Year Configuration
KDY220 2004/08-2007/08 2.5L Diesel 2KDFTV (109 HP / 80 kW) Rear wheel drive.
KDY230 2004/08-2007/08 2.5L Diesel 2KDFTV (109 HP / 80 kW) Rear wheel drive.
KDY240V 2004/08-2007/08 2.5L Diesel 2KDFTV (109 HP / 80 kW) Rear wheel drive.
KDY270 2004/08-2007/08 2.5L Diesel 2KDFTV (109 hp / 8 kW) Four-wheel drive (4WD).
KDY270 2004/08-2007/08 2.5L Diesel 2KDFTV (109 hp / 80 kW) Four-wheel drive (4WD).
KDY280 2004/08-2007/08 2.5L Diesel 2KDFTV (109 hp / 80 kW) Four-wheel drive (4WD).
KDY290V 2004/08-2007/08 2.5L Diesel 2KDFTV (109 hp / 80 kW) Four-wheel drive (4WD).
HILUX
Chassis No. Year Configuration
KUN10L 2011/07-2015/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN10R 2011/07-2015/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN15L 2011/07-2015/04 2.5L Diesel 2KDFTV (101 hp / 74 kW) Rear wheel drive.
KUN15L 2006/08-2012/04 2.5L Diesel 2KDFTV (102 hp / 75 kW) Rear wheel drive.
KUN15L 2012/08-2015/04 2.5L Diesel 2KDFTV (102 hp / 75 kW) Rear wheel drive.
KUN15L 2005/07-2006/08 2.5L Diesel 2KDFTV (120 HP / 88 kW) Rear wheel drive.
KUN15L 2006/08-2012/04 2.5L Diesel 2KDFTV (120 HP / 88 kW) Rear wheel drive.
KUN15L 2011/07-2015/12 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN15L 2011/07-2015/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN15R 2011/07-2015/04 2.5L Diesel 2KDFTV (101 hp / 74 kW) Rear wheel drive.
KUN15R 2011/08-2015/12 2.5L Diesel 2KDFTV (101 hp / 74 kW) Rear wheel drive.
KUN15R 2011/08-2015/12 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN15R 2012/02-2015/12 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN16R 2011/07-2015/04 3.0L Diesel 1KDFTV (163 hp / 120 kW) Rear wheel drive.
KUN16R 2011/07-2015/04 3.0L Diesel 1KDFTV (171 hp / 126 kW) Rear wheel drive.
KUN25L 2005/07-2006/08 2.5L Diesel 2KDFTV (102 hp / 75 kW) Four-wheel drive (4WD).
KUN25L 2011/07-2015/04 2.5L Diesel 2KDFTV (120 hp / 88 kW) Four-wheel drive (4WD).
KUN25L 2006/08-2011/08 2.5L Diesel 2KDFTV (120 hp / 88 kW) Four-wheel drive (4WD).
KUN25L 2011/07-2015/04 2.5L Diesel 2KDFTV (128 hp / 94 kW) Four-wheel drive (4WD).
KUN25L 2011/07-2015/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25R 2011/07-2015/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25R 2011/08-2015/12 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25R 2012/02-2016/09 2.5L Diesel 2KDFTV (144 hp / 106 kW) Four-wheel drive (4WD).
KUN25R 2011/08-2015/12 2.5L Diesel 2KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2006/01-2011/08 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26L 2012/04-2015/04 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26R 2011/07-2015/04 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN26R 2011/08-2015/12 3.0L Diesel 1KDFTV (171 hp / 126 kW) Four-wheel drive (4WD).
KUN35L 2011/07-2015/04 2.5L Diesel 2KDFTV (144 hp / 106 kW) Rear wheel drive.
KUN35R 2011/08-2015/12 2.5L Diesel 2KDFTV (101 hp / 74 kW) Rear wheel drive.

Masuma's advanced V-profile (timing) drive belts with increased transverse flexibility are designed specifically for driving engine attachments. The main advantage of these belts is increased flexibility , which is provided by a special polyester cord, while flexibility is achieved without sacrificing strength.

Guarantee for driving belts of 12 months. Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No.
7PK-1095
