Full Product Catalog

MASUMA V-RIBBED BELT
VENDOR CODE: 7PK-1715

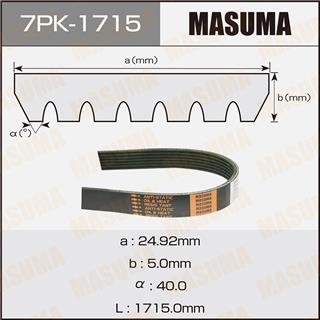

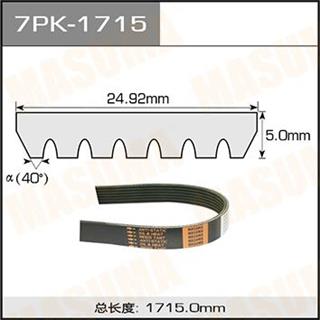

Remark: a : 24.92mm b : 5.0mm α : 40.0 L : 1715.0mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
252124A411
31110-59B-014
31110-RL5-A01
31110-RL5-A02
ACCORD
Chassis No. Year Configuration
2400cc. CU2. K.R. 2.4 Executive. K24Z3. 2011/01-2011/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. CU2. K.R. 2.4 Executive. K24Z3. 2012/01-2012/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. CU2. K.R. 2.4 Executive. K24Z3. 2010/01-2010/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 Executive. K24Z3. 2012/01-2012/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 Executive. K24Z3. 2011/01-2011/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 Executive. K24Z3. 2009/01-2009/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 Executive. K24Z3. 2010/01-2010/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 S. K24Z3. 2012/01-2012/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 Type S. K24Z3. 2011/01-2011/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 Type S. K24Z3. 2012/01-2012/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 Type S. K24Z3. 2009/01-2009/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
2400cc. CU2. kg. 2.4 Type S. K24Z3. 2010/01-2010/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
2400cc. K.R. 2.4 Type S. K24Z3. 2011/01-2011/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. K.R. 2.4 Type S. K24Z3. 2010/01-2010/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
CU2 2008/12-2013/03 DBA-CU2 2.4L Gasoline K24A PGM-FI Front wheel drive.
ACCORD TOURER
Chassis No. Year Configuration
2400cc. K.R. 2.4 Executive. K24Z3. 2011/01-2011/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. K.R. 2.4 Type S. K24Z3. 2011/01-2011/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. kg. 2.4 Executive. K24Z3. 2011/01-2011/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. kg. 2.4 Executive. K24Z3. 2010/01-2010/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
2400cc. kg. 2.4 Executive. K24Z3. 2009/01-2009/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
2400cc. kg. 2.4 Type S. K24Z3. 2011/01-2011/12 2.4L Gasoline K24Z3 PGM-FI (190 HP / 140 kW) Front wheel drive.
2400cc. kg. 2.4 Type S. K24Z3. 2010/01-2010/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
2400cc. kg. 2.4 Type S. K24Z3. 2009/01-2009/12 2.4L Petrol K24Z3 PGM-FI (200 HP / 147 kW) Front wheel drive.
CW2 2008/12-2013/03 DBA-CW2 2.4L Gasoline K24A PGM-FI Front wheel drive.
CIVIC
Chassis No. Year Configuration
FK7 2017/01- DBA-FK7 1.5L Petrol L15B PGM-FI (150 HP / 110 kW) Front wheel drive.
JADE
Chassis No. Year Configuration
FR5 2015/02-2020/07 DBA-FR5 1.5L Petrol L15B PGM-FI (129 HP / 95 kW) Front wheel drive.
STEPWGN
Chassis No. Year Configuration
RP3 2016/01- DBA-RP3 1.5L Petrol L15B PGM-FI (150 HP / 110 kW) Front wheel drive.
CR-V
Chassis No. Year Configuration
RW1 2018/08- DBA-RW1 1.5L Petrol L15B PGM-FI (129 hp / 95 kW) Front wheel drive.
RW2 2018/08- DBA-RW2 1.5L Gasoline L15B PGM-FI (129 HP / 95 kW) Four wheel drive (4WD).

Masuma's advanced V-profile (timing) drive belts with increased transverse flexibility are designed specifically for driving engine attachments. The main advantage of these belts is increased flexibility , which is provided by a special polyester cord, while flexibility is achieved without sacrificing strength.

Guarantee for driving belts of 12 months. Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No.
7PK-1715
