MASUMA V-RIBBED BELT
VENDOR CODE: 7PK-1765

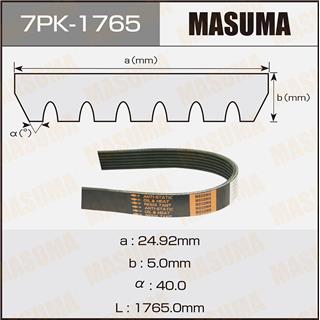

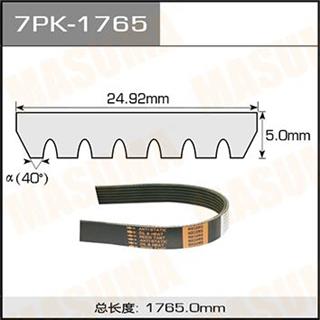

Remark: a : 24.92mm b : 5.0mm α : 40.0 L : 1765.0mm
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
38920-PNA-023
EDIX
Chassis No. Year Configuration
BE3 2004/07-2009/08 DBA-BE3 2.0L Gasoline K20A PGM-FI Front wheel drive.
BE4 2004/07-2009/08 ABA-BE4 2.0L Gasoline K20A PGM-FI Four wheel drive (4WD).
STEPWGN
Chassis No. Year Configuration
RF3 2004/02-2005/05 CBA-RF3 2.0L Gasoline K20A PGM-FI (160 HP / 118 kW) Front wheel drive.
RF3 2003/06-2004/02 UA-RF3 2.0L Gasoline K20A PGM-FI (160 HP / 118 kW) Front wheel drive.
RF4 2004/02-2005/05 CBA-RF4 2.0L Gasoline K20A PGM-FI (160 HP / 118 kW) Four wheel drive (4WD).
RF4 2003/06-2004/02 UA-RF4 2.0L Gasoline K20A PGM-FI (160 HP / 118 kW) Four wheel drive (4WD).
RF5 2004/02-2005/05 CBA-RF5 2.0L Gasoline K20A PGM-FI (160 HP / 118 kW) Front wheel drive.
RF5 2003/06-2004/02 UA-RF5 2.0L Gasoline K20A PGM-FI (160 HP / 118 kW) Front wheel drive.
RF6 2004/02-2005/05 CBA-RF6 2.0L Gasoline K20A PGM-FI (160 HP / 118 kW) Four wheel drive (4WD).
RF6 2003/06-2004/02 UA-RF6 2.0L Gasoline K20A PGM-FI (160 HP / 118 kW) Four wheel drive (4WD).
RF7 2004/02-2005/05 CBA-RF7 2.4L Gasoline K24A PGM-FI (162 HP / 119 kW) Front wheel drive.
RF7 2003/06-2004/02 UA-RF7 2.4L Gasoline K24A PGM-FI (162 HP / 119 kW) Front wheel drive.
RF8 2004/02-2005/05 CBA-RF8 2.4L Gasoline K24A PGM-FI (162 HP / 119 kW) Four wheel drive (4WD).
RF8 2003/06-2004/02 UA-RF8 2.4L Gasoline K24A PGM-FI (162 HP / 119 kW) Four wheel drive (4WD).
STREAM
Chassis No. Year Configuration
RN3 2004/01-2006/07 CBA-RN3 2.0L Gasoline K20A PGM-FI (156 HP / 115 kW) Front wheel drive.
RN3 2003/09-2004/01 UA-RN3 2.0L Gasoline K20A PGM-FI (156 HP / 115 kW) Front wheel drive.
RN4 2004/01-2006/07 ABA-RN4 2.0L Gasoline K20A PGM-FI (158 HP / 116 kW) Four wheel drive (4WD).
RN4 2001/01-2004/01 LA-RN4 2.0L Gasoline K20A PGM-FI (156 HP / 115 kW) Four wheel drive (4WD).
RN5 2004/01-2006/07 CBA-RN5 2.0L Gasoline K20B PGM-FI (156 HP / 115 kW) Front wheel drive.
RN5 2003/12-2004/01 UA-RN5 2.0L Gasoline K20B PGM-FI (156 HP / 115 kW) Front wheel drive.

Masuma's advanced V-profile (timing) drive belts with increased transverse flexibility are designed specifically for driving engine attachments. The main advantage of these belts is increased flexibility , which is provided by a special polyester cord, while flexibility is achieved without sacrificing strength.

Guarantee for driving belts of 12 months. Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts. All products are manufactured to order, technologies and under the control of the parent company Masuma Auto Spare Parts Co., LTD (Tokyo, Japan) at dozens of modern factories located in East Asia.

MASUMA No.
7PK-1765
