MASUMA WHEEL HUB UNIT
VENDOR CODE: MW-71002

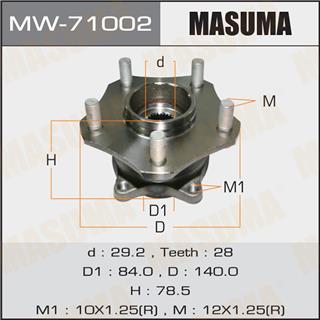

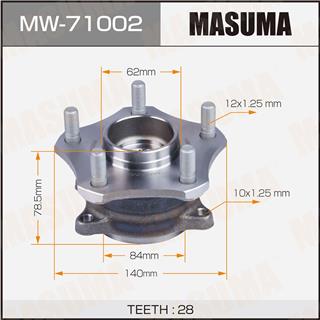

Remark: d : 29.2 Teeth : 28 D1 : 84.0 D : 140.0 H : 78.5 M1 : 10X1.25(R) M : 12X1.25(R)
The manufacturer reserves the right to change the characteristics, appearance, configuration of the goods and the place of its production without notice.
ABOUT THE PRODUCT
APPLICABILITY
OEM
BRAND NUMBER
43401-65J00
43401-65J01
43401-65J02
43402-57L50
GRAND VITARA
Chassis No. Year Configuration
JB416X-2. 1600cc. 3D. M16A. 4WD. 2007/01-2016/07 1.6L Gasoline M16A MPI (106 hp / 78 kW) Four wheel drive (4WD).
JB416X-4. 1600cc. 3D. M16A. 4WD. 2009/01-2016/07 1.6L Gasoline M16A MPI (106 hp / 78 kW) Four wheel drive (4WD).
JB416X-4. 1600cc. 3D. M16A. 4WD. Rus. 2005/01-2016/07 1.6L Gasoline M16A MPI (106 hp / 78 kW) Four wheel drive (4WD).
JB416X-5. 1600cc. 3D. M16A. 4WD. 2010/01-2016/07 1.6L Gasoline M16A MPI (106 hp / 78 kW) Four wheel drive (4WD).
JB416X. 1600cc. 3D. M16A. 4WD. 2005/01-2016/07 1.6L Gasoline M16A MPI (106 hp / 78 kW) Four wheel drive (4WD).
JB419WD-2. 1900cc. 5D. F9Q. turbo. Diz. 4WD. 2007/01-2016/07 1.9L Diesel F9Q (129 hp / 95 kW) Four-wheel drive (4WD).
JB419WD-3. 1900cc. 5D. F9QB. turbo. Diz. 4WD. 2008/01-2016/07 1.9L Diesel F9QB (129 hp / 95 kW) Four-wheel drive (4WD).
JB419WD-4. 1900cc. 5D. F9QB. turbo. Diz. 4WD. 2009/01-2016/07 1.9L Diesel F9QB (129 hp / 95 kW) Four-wheel drive (4WD).
JB419WD-5. 1900cc. 5D. F9QB. turbo. Diz. 4WD. 2010/01-2016/07 1.9L Diesel F9QB (129 hp / 95 kW) Four-wheel drive (4WD).
JB419WD-6. 1900cc. 5D. F9QC. turbo. Diz. 4WD. 2011/01-2016/07 1.9L Diesel F9QС (129 hp / 95 kW) Four-wheel drive (4WD).
JB419WD. 1900cc. 5D. F9Q. turbo. Diz. 4WD. 2005/01-2016/07 1.9L Diesel F9Q (129 hp / 95 kW) Four-wheel drive (4WD).
JB419XD-2. 1900cc. 3D. F9Q. turbo. Diz. 4WD. 2007/01-2016/07 1.9L Diesel F9Q (129 hp / 95 kW) Four-wheel drive (4WD).
JB419XD-3. 1900cc. 3D. F9Q. turbo. Diz. 4WD. 2008/01-2016/07 1.9L Diesel F9Q (129 hp / 95 kW) Four-wheel drive (4WD).
JB419XD-4. 1900cc. 3D. F9QB. turbo. Diz. 4WD. 2009/01-2016/07 1.9L Diesel F9QB (129 hp / 95 kW) Four-wheel drive (4WD).
JB419XD-5. 1900cc. 3D. F9QB. turbo. Diz. 4WD. 2010/01-2016/07 1.9L Diesel F9QB (129 hp / 95 kW) Four-wheel drive (4WD).
JB419XD-6. 1900cc. 3D. F9QC. turbo. Diz. 4WD. 2011/01-2016/07 1.9L Diesel F9QС (129 hp / 95 kW) Four-wheel drive (4WD).
JB419XD. 1900cc. 3D. F9Q. turbo. Diz. 4WD. 2005/01-2016/07 1.9L Diesel F9Q (129 hp / 95 kW) Four-wheel drive (4WD).
JB420W-2. 2000cc. 5D. J20A. 4WD. 2007/01-2016/07 2.0L Gasoline J20A MPI (140 hp / 103 kW) Four-wheel drive (4WD).
JB420W-4. 2000cc. 5D. J20A. 4WD. 2009/01-2016/07 2.0L Gasoline J20A MPI (140 hp / 103 kW) Four-wheel drive (4WD).
JB420W-4. 2000cc. 5D. J20A. 4WD. Rus. 2009/01-2016/07 2.0L Gasoline J20A MPI (140 hp / 103 kW) Four-wheel drive (4WD).
JB420W-5. 2000cc. 5D. J20A. 4WD. 2010/01-2016/07 2.0L Gasoline J20A MPI (140 hp / 103 kW) Four-wheel drive (4WD).
JB420W-5. 2000cc. 5D. J20A. 4WD. Rus. 2010/01-2016/07 2.0L Gasoline J20A MPI (140 hp / 103 kW) Four-wheel drive (4WD).
JB420W-6. 2000cc. 5D. J20A. 4WD. 2011/01-2016/07 2.0L Gasoline J20A MPI (140 hp / 103 kW) Four-wheel drive (4WD).
JB420W-6. 2000cc. 5D. J20A. 4WD. Rus. 2011/01-2016/07 2.0L Gasoline J20A MPI (140 hp / 103 kW) Four-wheel drive (4WD).
JB420W. 2000cc. 5D. J20A. 4WD. 2005/01-2016/07 2.0L Gasoline J20A MPI (140 hp / 103 kW) Four-wheel drive (4WD).
JB424W-4. 2400cc. 5D. J24B. 4WD. 2009/01-2016/07 2.4L Gasoline J24B MPI (169 hp / 124 kW) Four-wheel drive (4WD).
JB424W-4. 2400cc. 5D. J24B. 4WD. Rus. 2008/07-2016/07 2.4L Gasoline J24B MPI (166 hp / 122 kW) Four-wheel drive (4WD).
JB424W-5. 2400cc. 5D. J24B. 4WD. 2010/01-2016/07 2.4L Gasoline J24B MPI (169 hp / 124 kW) Four-wheel drive (4WD).
JB424W-5. 2400cc. 5D. J24B. 4WD. Rus. 2010/01-2016/07 2.4L Gasoline J24B MPI (169 hp / 124 kW) Four-wheel drive (4WD).
JB424W-6. 2400cc. 5D. J24B. 4WD. 2011/01-2016/07 2.4L Gasoline J24B MPI (169 hp / 124 kW) Four-wheel drive (4WD).
JB424W-6. 2400cc. 5D. J24B. 4WD. Rus. 2011/01-2016/07 2.4L Gasoline J24B MPI (169 hp / 124 kW) Four-wheel drive (4WD).
JB424X-4. 2400cc. 3D. J24B. 4WD. 2009/01-2016/07 2.4L Gasoline J24B MPI (169 hp / 124 kW) Four-wheel drive (4WD).
JB424X-4. 2400cc. 3D. J24B. 4WD. Rus. 2008/07-2016/07 2.4L Gasoline J24B MPI (166 hp / 122 kW) Four-wheel drive (4WD).
JB424X-5. 2400cc. 3D. J24B. 4WD. 2010/01-2016/07 2.4L Gasoline J24B MPI (166 hp / 122 kW) Four-wheel drive (4WD).
JB424X-5. 2400cc. 3D. J24B. 4WD. Rus. 2010/01-2016/07 2.4L Gasoline J24B MPI (169 hp / 124 kW) Four-wheel drive (4WD).
JB424X-6. 2400cc. 3D. J24B. 4WD. 2011/01-2016/07 2.4L Gasoline J24B MPI (166 hp / 122 kW) Four-wheel drive (4WD).
JB424X-6. 2400cc. 3D. J24B. 4WD. Rus. 2011/01-2016/07 2.4L Gasoline J24B MPI (166 hp / 122 kW) Four-wheel drive (4WD).
JB632W-4. 3200cc. 5D. N32A. 4WD. 2009/01-2016/07 3.2L Petrol N32A MPI (233 hp / 171 kW) Four-wheel drive (4WD).
JB632W-4. 3200cc. 5D. N32A. 4WD. Rus. 2008/07-2016/07 3.2L Petrol N32A MPI (233 hp / 171 kW) Four-wheel drive (4WD).
ESCUDO
Chassis No. Year Configuration
TA74W 2006/06-2007/05 1.6L Petrol M16A EPI (106 hp / 78 kW) Four wheel drive (4WD).
TD54W 2006/06-2008/05 2.0L Gasoline J20A EPI (145 hp / 107 kW) Four-wheel drive (4WD).
TD54W 2005/05-2006/06 2.0L Gasoline J20A EPI (145 hp / 107 kW) Four-wheel drive (4WD).
TD94W 2005/06-2006/06 2.7L Gasoline H27A(4.8) EPI (184 HP / 135 kW) Four wheel drive (4WD).
TD94W 2006/06-2008/06 2.7L Gasoline H27A(4.8) EPI (184 HP / 135 kW) Four wheel drive (4WD).
TDA4W 2008/06-2017/04 2.4L Petrol J24B EPI (166 hp / 122 kW) Four-wheel drive (4WD).
TDB4W 2008/06-2008/11 3.2L Petrol N32A EPI (224 hp / 165 kW) Four-wheel drive (4WD).

Masuma hubs are manufactured to exact OEM specifications , making them easy to replace worn OE parts. The resource of bearings in Masuma hubs is comparable to the resource of the original ones and significantly exceeds the durability of ""contract"" parts, which are often installed by car owners.

Guarantee for hub knots of 12 months . Wherever you buy or install a part, within a year you have the right to return it, simply by providing him with a receipt or other document confirming the date of purchase and the price. Even if you are not a certified auto mechanic and installed the part yourself in your garage, just keep the purchase receipt and if there is a problem, you can always return the part.

Masuma is a global brand of automotive parts, accessories and consumables. The main specialization of the brand: resource parts for after-sales service of Japanese cars. The company's strategy is to offer consumers the best ratio of reliability and price of spare parts.

MASUMA No.
MW-71002
You May Also Like

MW-11021

Click to view

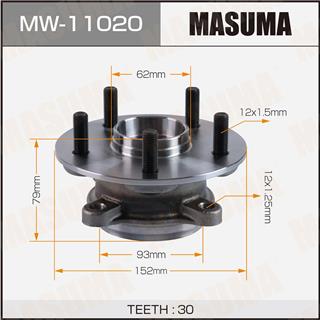

MW-11020

Click to view

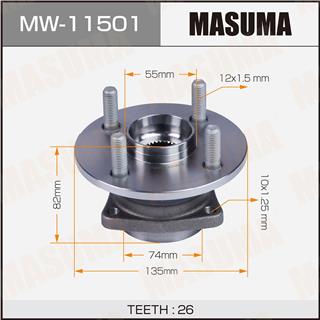

MW-11501

d : 27.7 Teeth : 26 D1 : 74.0,...

Click to view

MW-11506

d : 44.0 d1 : 12.0/12.9 D : 92...

Click to view

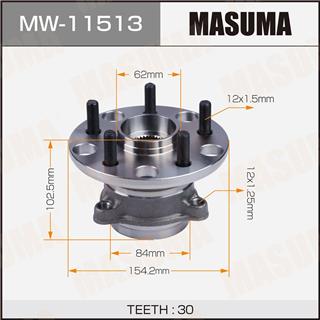

MW-11513

d : 33.4 Teeth : 30 D1 : 81.1/...

Click to view

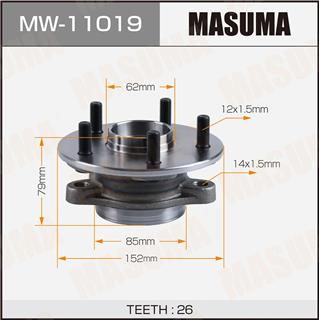

MW-11019
